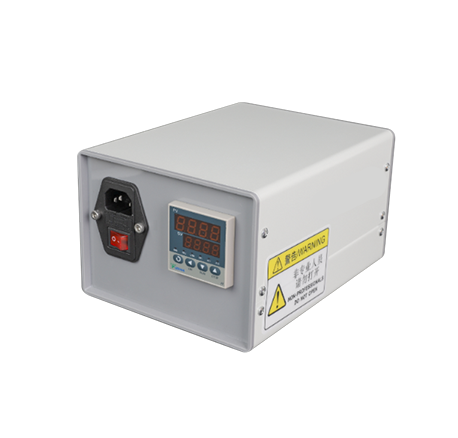

TB01 Blackbody.

Description:

Blackbody - Accuracy in Temperature for Thermal Camera.

Blackbody is a calibration device and a standard temperature source. The thermal camera with blackbody can be calibrated in real time, which can keep the temperature measurement accuracy at a high level of ±0.1-0.3℃.

Set Up Tips:

Keep the distance between target and camera about 2.5-3m;

The blackbody is used together with thermal camera,1.5-3m away from the camera, camera installation should be higher than the blackbody, and the top view angle is the best ;

Make sure that the blackbody would not be blocked by other targets during temperature measurement;

Recommend to set up the solution in a stable environment without wind in the indoor space.

Features and Specifications:

Working Temperature: 40.0℃(ambient temperature +5.0℃~ 50.0℃ adjustable).
Temperature Resolution: 0.01℃.

Temperature Measurement Accuracy: ±0.2℃(temperature range 35℃-37℃, ambient temperature 23℃ ± 3℃).

Temperature Stability: ±0.1℃.

Effective Emissivity: 0.97±0.02.

Power:110V-220V AC;50Hz-60Hz.

Operating Ambient Temperature/Humidity: ambient temperature 10℃-40℃,humidity ≤80%RH.
