Face recognition devices > F2-FH face recognition infrared temperature measurement terminal.

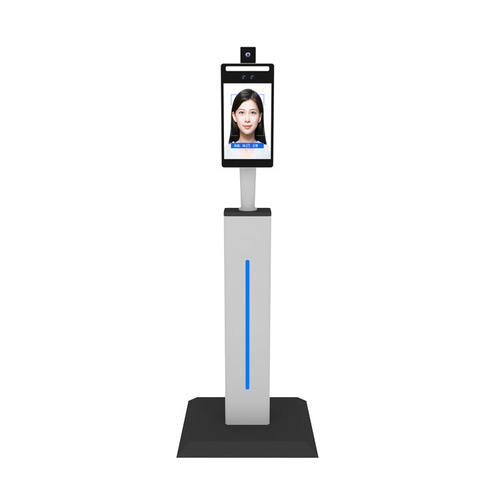

F2-FH face recognition infrared temperature measurement terminal.

F2-FH face recognition infrared temperature measurement terminal.

Min Lot piece
Items in lot 1

Availability is available

Description:

These products are listed here for your reference.

For wholesale purchases, please contact:

WhatsApp: +8615219501471

email: sv@china-sells.com

Wholesalers - special prices and conditions.



F2-FH face recognition infrared temperature measurement terminal.



Description:

This a an attendance machine, also a health monitor.
1. Facial Recognition & Thermometer access control device.
2. Contactless facial recognition thermometer + access control management.
3. Passing the checkpoint without stop, measuring temperature contactless.
4. It can recognize faces fast with masks.
5. The health management records can be inquired.
Application Scenario.

It is suitable for thousands of people's office areas, hotels, access gates, office buildings, schools, shopping malls, shops, communities, public services and management projects that require face access control.



Features and Specifications:

Product Features:

  • Dynamic dual-camera anti-counterfeiting, completely solve the deception of various photos on various carriers.
  • Dual infrared and RGB fill light at night; Infrared temperature measurement, optional mask recognition.
  • Support external access control card reader, ID card reader.
  • Support RS-485 serial port, Wiegand 26/34 output interface, support relay, door switch, door magnetic output content.
  • Support 29,000 people to store historical records locally.
  • Support public network and local area network deployment.
  • Support HTTP interface connection.
  • Support screen display content configuration.
  • Support identification distance configuration.

Identification height 1. 2-2.2 m.

Identification distance 30- 50cm (temperature test distance).

Recognition technology: Near-infrared live detection, embedded visible light face recognition, adapt to most indoor and outdoor environments, can quickly recognize on the move.

5 ° C Accurate temperature detection: 2-3 seconds per person-time temperature detection accuracy.

Status display Name broadcast display, custom information broadcast display.

Specification F2-FH:

F2-FH Face Recognition Integrated terminal.

Product Model - F2-FH.

Size - 8 inch, full viewing angle, 170 degree IPS LCD screen.

Screen Resolution - 800*1200.

Camera.

Type – RGB – Infrared.

Resolution - 2 million pixels.

Aperture - F2.8.

Focal Length - 3.18 mm.

White Balance – Automatic.

Wide Dynamic – Support.

Vertical Wide Angle – 1,35 m, 84°.

Horizontal Wide Angle – 2 m, 54°.

Basic specifications/

Operating System – Android 7.1 or above.

Equipment Power - DC12V (±10%) 3A.

Equipment Power Consumption - 15w MAX.

Relative Humidity - 0% ¨ 90% (In a non-condensing state).

Operating Temperature: -20  ~60(Wall-mounted design: the junction with the eight or six boxes is not waterproof, and a ceiling is required).

Protection Cass - IP55.

Use Environment - Indoor/Ourdoor.

Equipment Size: 275.2 mm * 123.2 mm * 30.2 mm.

Hardware Configuration.

Face recognition parameters:

Face verification accuracy >99%.

Face recognition distance 0.5m-1.5m.

Face ID card comparison time  600MS.

Local capacity 20,000 sheets.

Port:

Micro USB - 1 pc.,

RJ45 Gigabit – 1 pc.,

Relay, Wiegand Interface, RS-485, Door Sensor,  Door Switch.

Support - Infrared/White, Fill Light.

Basic Parameters:

Indicator Light - Support authentication success, Green light prompt; Authentication failure, Red light prompt.

WIFI - 2.4G 802.11b/g/n.

Bluetooth – Bluetooth 4.0.

4G LTE - Full Netcom (optional: custom purchase required).

Temperature Measurement Module:

Operating Temperature: -20℃ ~ +85℃.

Storage temperature: -40℃ ~ +85℃.

Power Consumption: < 0.3w.

Pixel: 32*32 Real-time temperature output.

Measurement accuracy: I + 0.5℃.

Measuring Distance: 0.3 ~ 1.0m.



For wholesale purchases, please contact:

WhatsApp: +8615219501471

email: sv@china-sells.com
