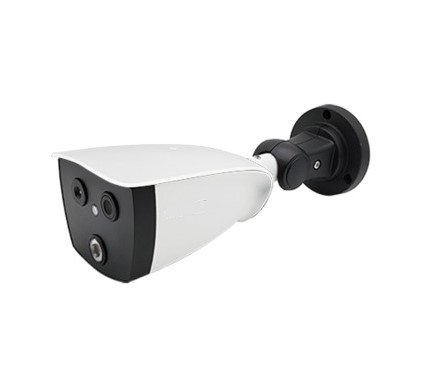

BF503, aI binocular fever detecting thermal camera.

BF503, aI binocular fever detecting thermal camera.

Min Lot piece
Items in lot 1

Weight, {{weight}} 2000 g
Availability is available

Description:



These products are listed here for your reference.

For wholesale purchases, please contact:

WhatsApp: +8615219501471

email: sv@china-sells.com

Wholesalers - special prices and conditions.



BF503, aI binocular fever detecting thermal camera.



Description:

2MP AI Binocular Fever Detecting Thermal Camera.

Non-contact High-accurate Body Temperature Measurement 35℃-38℃, Accuracy ±0.3℃).

AI Detecting 20-30pcs Human Faces Simultaneously and Snapshot.

Alarm Output if Abnormal Temperature Detected.

Voice Broadcast.

Fire Alert.

Third-party Platform Docking.

Can Record Identification Information and Temperature Information for Future Search.



Features and Specifications:

Model NO MP-BF503AI-TM.

Thermal.

Sensor VOx Uncooled Thermal Sensor Technology.

Resolution 256 x 192.

Pixel Interval 12μm.

NETD ≤60mk (@25℃,F#=1.0).

MP-BF503AI-TM.

2MP AI Binocular Fever Detecting Thermal Camera.

AI Thermal Series︱MP-BF503AI-TM.

Detection Accuracy.

Target Temperature:35℃-38℃, accuracy ±0.3℃;

Target Temperature:20℃-33℃ or 38℃-50℃, accuracy ±0.6℃;

Other Temperature: Accuracy±2℃

Field of View Horizontal Angle:35°, Vertical Angle:27°.

Image Mode Blackhot / Whitehot / Ironrow / Rainbow and etc, multi-color modes selectable.

Optical.

Image Sensor 1/2.8” Progressive Scan CMOS.

Resolution 1920x1080P@25fps.

Focal Length 4mm.

Field of View Horizontal Angle:84°, Vertical Angle:45°.

Mini. Illumination 0.005Lux@F1.2 Color mode, 0.001Lux@F1.2(B/W).

WDR DWDR.

Noise Reduction 2D DNR;3D DNR.

BLC Yes.

Dynamic Range ≥80dB.

S/N Ratio ≥46dB (AGC OFF).

AI.

Face Snapshot.

Built-in DL AI algorithm, support 20-30pcs faces detection simulatenously, face detection,

exposure, score, screening, Snapshot and upload, support FTP, HTTP, etc multi-method to

upload human face,shoulder, above the waist, whole body,original pic, etc pictures.

Function.

Temperature Detection Support detection of all monitoring area or specified area.

Abnormal Temperature Alarm High temperature limits, Low temperature limits, the temperature difference of specified zone.

Network Protocol Support RTSP, RTP, TCP, UDP, UPNP, DHCP, PPPoE protocol etc.

Network Interface.

Net.

1CH 10/10 BaseT Ethernet, RJ45 port.

Alarm Interface 1CH input/output.

Audio Interface 1CH input/output.

General.

Working Temperature -20°C ~55°C.

Working Humidity 0%-90% RH.

Protection Level IP67; TVS 6000V Lightning Protection,2K Surge Protection and Voltage Transient. Protection.

Power Consumption ≤5W.

Dimension(Product) 246x101x81mm(with bracket).

Weight 1.5KG(including package).



For wholesale purchases, please contact:

WhatsApp: +8615219501471

email: sv@china-sells.com
