Face recognition devices
Face recognition devices > MP-F501AI-8L, face recogntion temperature measurement machine.

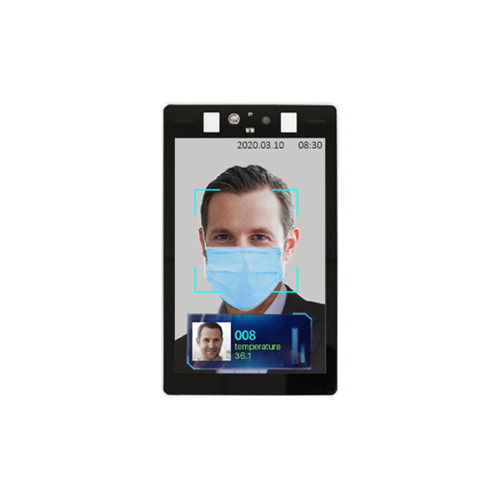

MP-F501AI-8L, face recogntion temperature measurement machine.

MP-F501AI-8L, face recogntion temperature measurement machine.

Min Lot piece
Items in lot 1

Availability is available

Description:

These products are listed here for your reference.

For wholesale purchases, please contact:

WhatsApp: +8615219501471

email: sv@china-sells.com

Wholesalers - special prices and conditions.



MP-F501AI-8L, face recogntion temperature measurement machine.



Description:

2MP AI Face Recognition Temperature Measurement Machine.

8 Inch HD LCD display screen,1080P;

Non-contact high-accurate body temperature measurement 35℃-42℃,±0.3℃);

Mask wearing detection;

Face recognition,50000pcs face database available;

Local alarm output if abnormal temperature detected;

Voice broadcast;

Access control, compatible with all kinds of access control system;

Attendance;

Third-party platform docking;

Record identification information and temperature information for future search.

1ch RJ45,1ch Wiegand,1ch relay output;

DC 12V.

It can be widely used in the aisles, or gates of public place or other controlled entrances or areas with large flow of people, difficult management, instead of the manual work, reducing the risk of cross infection during the special time.



Features and Specifications:

Model - MP-F501AI-8L.

LCD – Display: 8 Inch LCD Display Screen.

Thermal.

Sensor: Thermal imaging infrared temperature sensor.

Temperature: Range:5℃-42℃, Precision: ±0.3℃.

Detect Distance: 0.4m-0.7m.

Visible Parameters.

Lens: Focal length 1.8mm, Field of viewe:118°.

Mini. Illumination: 0.005Lux@F1.2 Color mode.

Dynamic Range ≥120dB.

S/N Ratio ≥46dB (AGC OFF).

Exposure Mode.

Program mode (customizable shutter interval), shutter mode (1/5 - 1/20,000s).

Support slow shutter.

White Balance: Auto, indoor, outdoor, sodium lamp mode, manual.

Digital Noise Reduction: Support 3D DNR.

Day and Night Mode: Fixed color

Image and Compression.

Video Compression: H.265 Main Profile / H.264 High profile / M-JPEG.

Max Resolution: 1920x1080@30fps.

Resolution:

Main Stream:1920x1080,1280x960,1280x720,720x576;

Sub-Stream: 640x480,352x288,320x240,176x144;

MJPEG:1920x1080,1280x720, closed.

Output Bit Rate: ( CBR or VBR), Bitstream setting range: 32Kbps~10Mbps.

Audio Compression: G711, PCM

Character Overlay: Support channel name, date and time overlay, adjustable overlay position.

AI.

Number of Face Bases: 50,000 sheets

Recognition Speed ≤300ms.

Live Detection: Support.

Mask Detection: Support.

Body Temperature: Support

Interface.

Power: DC 12V.

Network: 1ch10/100BaseT Ethernet RJ45 interface.

Wiegand: 1ch Wiegand output interface.

Switch: 1ch relay output.

SD Card: Built-in 16G SD card for storage of 50000pcs face database.

Speaker: Built-in speaker.

Audio: Built-in 2ch audio output.

Physical Characteristics.

Working Temperature: -10°C ~50°C.

Working Humidity: 0%-90% RH.

Power Consumption: 5W.

Size: 215 x 125 x 20 mm.

Weight (Include Package): 1.05KG (with wall-mounted bracket).



For wholesale purchases, please contact:

WhatsApp: +8615219501471

email: sv@china-sells.com
