Indoor full color LED display
LED equipment > LED video screens > Indoor full color LED display > Indoor full color SMD display P4, 160 x 160.

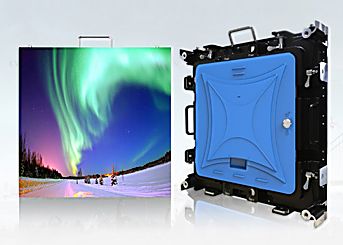

Indoor full color SMD display P4, 160 x 160.

Indoor full color SMD display P4, 160 x 160.

Min Lot piece
Items in lot 1

Weight, {{weight}} 40000 g
Availability is available

Description:

These products are listed here for your reference.

For wholesale purchases, please contact:

WhatsApp: +8615219501471

email: sv@china-sells.com

Wholesalers - special prices and conditions.



Indoor full color SMD display P4, 160 x 160.



Description:

LED display module.

Indoor full color SMD display P4.

Indoor (indoor) full color LED display.

It supports two service methods: front-end and post-service. Maintenance is quick and easy.

The color of the display is uniform, the contrast is high, the picture is realistic.

Service life up to 100,000 hours. The use of spot correction technology, good stability of brightness and color.

  1. High-quality ultra-thin fashion for shopping - just to get your attention.

High-quality red, green, and blue chips are packed in a ball for surface mounting, and balls for surface mounting are evenly glued to the front side of the printed circuit board at a certain distance and fixed by soldering.

Electronic components, such as drive and control, are attached to the back of the circuit board, and the finished circuit board is fixed and protected by a plastic kit, which is the main unit of the internal LED display.

  1. The ultra-wide viewing angle opens up new possibilities.

Lamps for surface mounting are very promising, and then they use high-precision equipment and advanced technologies to produce unique processing of anti-electromagnetic waves, distributed scanning technology.

Modular design for increased reliability and stability. Wide horizontal and vertical viewing angles, stable performance and wide reproducible content.

  1. Colorful and even color, high contrast, real picture.

Create ultra-high dynamic contrast and high-quality display effects to make the image with strong black and white contrast clear and provide transparency and brightness of the image.

High-definition images, bright, high brushes, high intensity, non-destructive method of neglecting the photovoltaic industry.

Compared to a traditional display, the LED display has no ghosting, the image is clear and crisp, and the image switch is anhydrous. Ultra high refresh rate, clean screen and wireless panel.

The LED display uses high-quality LED lamps and a black mask with a 3000: 1 contrast ratio, which makes the image clearer and brighte.



Features and Specifications:

Model Name: P4.

Color: full color.

Application: indoor, indoor.

Pixel structure: SMD three in one.

Display brightness (cd / ㎡): ≥1300.

Contrast: 5000: 01:00.

Brightness correction: brightness / color (adjusted before delivery).

Cabinet Resolution (W * H): 192 * 192.

Front level of protection: IP50.

Average power (W / ㎡): ≤300.

Pixel Density (dots / ㎡): 160000.

Color Temperature (K): 3000-10000.

Frame Rate (Hz): 50/60.

Module size: 160 * 160.

Material: cast aluminum box.

Screen Weight (kg / ㎡): 36.

Life time (hours): 100000.

Pixel Pitch: 4 mm.

Scan Method: 1/32 scan.

Horizontal / vertical viewing angle (°): 160.

Image refresh rate (Hz): 1920/3840.

Module Resolution: 64 * 64.

Flatness (mm): ≤0.5.

Input voltage: AC 100V-220V 50/60 Hz.

Operating temperature and humidity: -10 ℃ -50 ℃ / 5% -95%.

Pixel composition: 1R1G1B.

Drive Mode: DC drive current.

Gray level (bit): 12/14/16.

Brightness control: 0-255 levels.

Box size (width * height mm): 480 * 480.

Service Method: Before and After Service.

Maximum Power (W / ㎡): ≤900.

Storage temperature and humidity: -10 ℃ -60 ℃ / 5% -95%.
