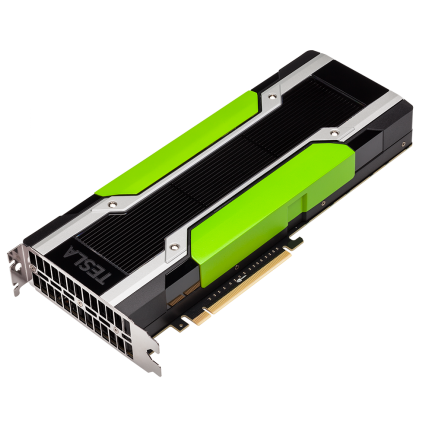

NVIDIA Tesla M10.
NVIDIA Tesla M10, a desktop graphics card based on Maxwell architecture and 28 nm manufacturing process, primarily aimed at designers. It has 4x 8 GB of GDDR5 memory at 5.2 GHz, and coupled with a 4x 128-bit interface, this creates a bandwidth of 4x 83.2 GB / s.
In terms of compatibility, this is a dual-slot card connected via PCIe 3.0 x16. The length of the reference version is 267 mm. An additional 1x 8-pin power cable is required for connection, and power consumption is 225 watts.
IT needs a software-defined approach to virtualization in the data center that delivers scalability, data security, and simplified manageability. However, adoption of desktop virtualization solutions has been limited by their failure to deliver a user experience that’sas good as physical devices.
The NVIDIA Tesla M10 GPU accelerator works with NVIDIA GRID™ software to provide the industry’s highest user density for virtualized desktops and applications. It supports 64 desktops per board and 128 desktops per server, giving your business the power to deliver great experiences to all of your employees at an affordable cost.
GRID technology helps you protect your most valuable data, keeping it secure in the data center while providing just the right level of access to users. Keep your corporate intellectual property safe while also boosting productivity across the enterprise. NVIDIA GRID has three different editions that let you assign the right level of resources to each of your users; Virtual PC, Virtual Workstation, and Virtual Workstation Extended. When you create a new desktop, you simply assign a license based on the user profile that will be accessing it. IT managers can easily assign the optimal amount of graphics memory and deliver a customized graphics profile to meet the specific needs of each user. Every virtual desktop has dedicated graphics memory, just like they would at their desk, so they always have the resources they need to launch and run their applications. GRID enables up to sixteen users to share each physical GPU, so the graphics resources of the available GPUs can be assigned to virtual machines in a balanced way.
Features and Specifications:
MEMORY SIZE (PER BOARD) - 32 GB GDDR5 (8 GB per GPU)
MEMORY INTERFACE - 128-bit x 4
MEMORY BANDWIDTH - 83 Gb/s x 4
CUDA CORES - 2560 (640 per GPU)
MAX USER PER BOARD - 64
MEMORY INTERFACE - PCI Express 3.0 x16
MAX POWER CONSUMPTION - 225 W
THERMAL SOLUTION - passive Heatsink
FORM FACTOR - 111,15 mm (H) x 267,7 mm (L) Dual Slot, Full Height
DISPLAY CONECTORS - None
POWER CONNECTORS - 8-pin PCIe power connector
WEIGHT (W/O EXTENDER) - 992g
PART NUMBER AND EAN - TCSM10M-PB 3536403351397.
1 x NVIDIA Tesla M10.
