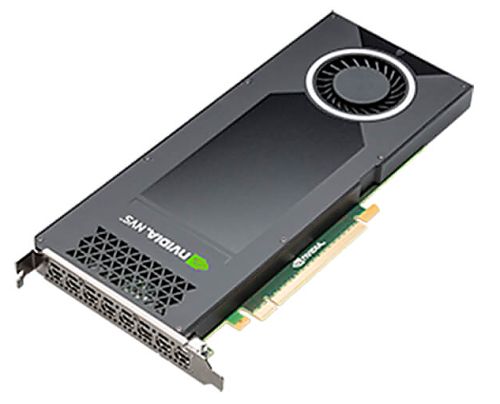

NVIDIA NVS 810.

NVIDIA NVS 810.

Description:

The NVIDIA® NVS™ 810 graphics board delivers exceptional display connectivity, cost-effective scalability, and advanced image management capabilities that make it easy to drive any kind of multi-display digital signage setup. It’s the first of its kind to offer eight display outputs, combined with the world’s most advanced GPU architecture - all in a single-slot form factor.

3D Graphics Architecture:

Scalable geometry architecture

Hardware tessellation engine

FXAA/TXAA dedicated anti-aliasing engine1

Shader Model 5.0 (OpenGL 4.5 and DirectX 12)

Up to 16K x16K texture and render processing

Transparent multisampling and super sampling

16x angle independent anisotropic filtering

32-bit per-component floating point texture filtering and blending

Up to 64x full scene antialiasing (FSAA)

Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)

Dedicated H.264 Encoder1

NVIDIA GPU Boost (Automatically increases GPU engine throughput to maximize application performance.)

Features and Specifications:

CUDA Parallel Processor Cores - 1024 (512 per GPU)

Frame Buffer Memory - 4 GB DDR3 (2GB per GPU)

Memory Interface - 128-bit (64-bit per GPU)

Memory Bandwidth - 28.8 GB/s

Max Power Consumption - 68 W

Graphics Bus - PCI Express 3.0 x16

Display Connectors - Mini DP 1.2(8)

Max Display Support - 8x 4096x2160@30Hz, 4x 4096x2160@60Hz,

Form Factor - 4.4” H x 7.8” L Single Slot

Thermal Solution - Active

Product Weight - 468g.

Package Including:

1 x NVIDIA NVS 810.
