"Dry water" Novec 1230.
Novec 1230 (FK-5-1-12) (fluoroketone C-6) is a colorless transparent liquid with a faint odor that is 1.6 times heavier than water and, most importantly, does not conduct electricity. Its dielectric constant is 2.3 (for a unit, dry nitrogen is taken as the standard).
Visually, the liquid is similar to pure water, but it is a dielectric (does not conduct electric current), weakly wets and is not a solvent - hence called "dry water". The substance in its original form is non-toxic, has an extremely low solubility in water. Weak molecular bonds, disintegrates under the influence of ultraviolet.
Does not affect working electronics, does not destroy paper documents and artwork. These properties have ensured the applicability of Novec 1230 in firefighting systems for server rooms and other electronics, libraries, archives.
Novec ™ 1230 Fire Protection Fluid is used as gas, but at room temperature is a liquid. It does not conduct an electric current in either liquid or gaseous state.
Recently, the mining enthusiasts have been actively using it to create liquid-cooled farms. This allows you to save up to 40% of electricity costs, significantly reduce noise from the operation of equipment and extends the service life. Recently, the solution was used on the largest crypto-farm in Hong Kong.
3M has published a document on the safety of the substance. It follows that the substance in its original form is not poisonous, has an extremely low solubility in water, which prevents the substance from passing through the cell membranes into the body. Conducted toxicological tests, as well as other information on the components of this substance, showed that no inhalation, ingestion, contact with the skin and eyes is expected or observed (paragraph 11.1 of the safety data sheet).

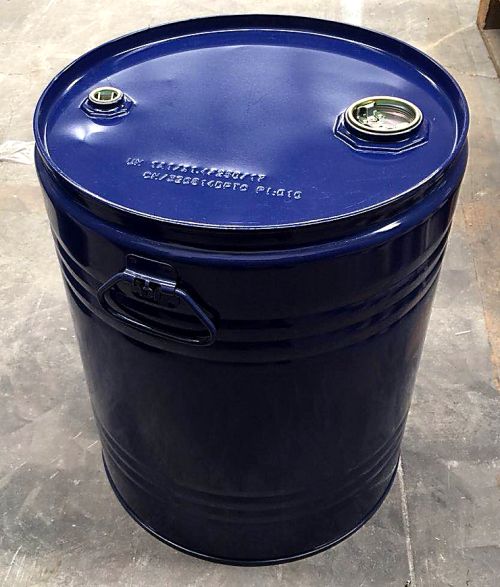

Supplied in metal kegs or kegs, weighing 25-30, 100, 200, 500 kg.
Features and Specifications:
Chemical formula: CF3CF2C (O) CF (CF3) 2 (perfluoro (ethyl-isopropyl ketone), six-carbon substance, discharge fluorinated ketone.
Patented by 3M Corporation as a refrigerant in the course of research on the replacement of Hladon 114 (1,1,2,2-tetrafluorodichloroethane). First introduced in 2004.
All values correspond to a temperature of 25 ° C (77 ° F), unless otherwise specified.
Properties GOTV ZM ™ Novec ™ 1230 Fire Protection Fluid
The chemical formula CF3CF2C (0) CF (CF3) 2.
Molecular weight 316.04.
The boiling point at 1 atm is 49.2 ° C.
The freezing point is -108.0 ° C (-162.4 ° F).
The critical temperature is 168.7 ° C.
The critical pressure is 18.65 bar.
The critical volume is 494.5 cc / mol.
The critical density is 639.1 kg / m3.
The density in the liquid state is 1.60 g / ml.
Density in the gaseous state at a pressure of 1 atm 0.0136 g / ml.
Specific volume, gas at 1 atm 0.0733 m3 / kg.
Specific heat, liquid 1,103 kJ / kg ° C.
Specific volume, steam at 1 atm 0.891 kJ / kg ° C.
Heat of evaporation at a boiling point of 88.0 kJ / kg.
The viscosity of the liquid at 0 ° C / 25 ° C is 0.56 / 0.39 cSt.
The vapor pressure is 0.404 bar.
Relative dielectric strength at 1 atm (N2 = 1.0) 2.3.
Industry lists and permissions:
Underwriters Laboratories Inc (ULI) USA.
Underwriters Laboratories CA (ULC) Canada.
FM Global (FM) USA.
Loss Prevention Certification Board (LPCB) United Kingdom.
Scientific Services Laboratories (SSL) Also called Certifire Pty Ltd Australia.
VdS Schadenverhutung (VdS) Germany.
National Center for Protection and Protection (CNPP) France.
Korea Fire Institute (KFI) Korea.
Supplied in metal kegs or kegs weighing 25-30 kg, 100, 200, 500 kg.
For delivery and prices, please contact our managers. Additional information about the products and our company can be found on our official accounts:
For more details and catalog, please contact our managers.
Wholesaler - special rates and conditions.
Waiting for your orders!
