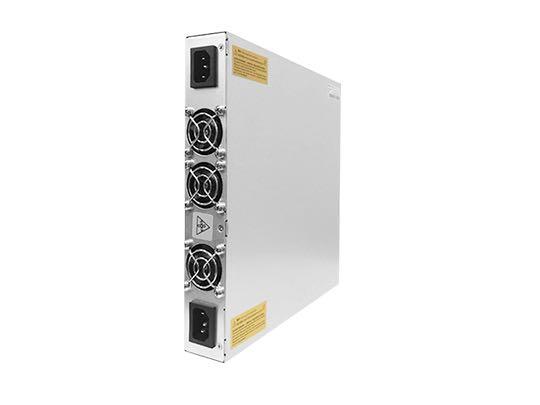

Bitmain APW9 PSU, 3600W, for S17, S17 Pro, T17.

Bitmain APW9 PSU, 3600W, for S17, S17 Pro, T17.

Description.

The original power supply from Bitmain for ASIC miners of the following models: S17, S17 Pro, T17.

DC voltage 14.5V-21V.

Rated current (220V input) 170A.

Rated power (220V input) 3600W.

Ripple & Noise <1%.

Regulation <1%.

Load regulation <1%.

Rise time <2S.

Power off protection response time> 10PC.

DC voltage 12.3V.

Rated current (220V input) 12A.

Ripple & Noise <1%.

Voltage accuracy 12.2V-12.4V.

Source Regulation <1%.

Load regulation <1%.

Configure, Rise time <2S.

Power off protection response time> 10PC.

Voltage range 200-240VAC

Frequency range 47-63Hz.

Force factor> 0.99 (full load).

Leakage current

Low voltage input 80-89VAC.

Output short circuit yes.

Output overcurrent 95-130A.

Overheating protection yes.

Working Temperature -20-60 ℃.

Working humidity 20% -90% RH (non-condensing).

Altitude <2000m.

Overall dimensions 204.8SSS * 157 * 42.5mm.

Weight 3.2 kg.

Cooling mode forced air cooling.

Noise 67dBA.

Package Including:

Power supply Bitmain APW9 PSU, 3600W (power cable not included).
